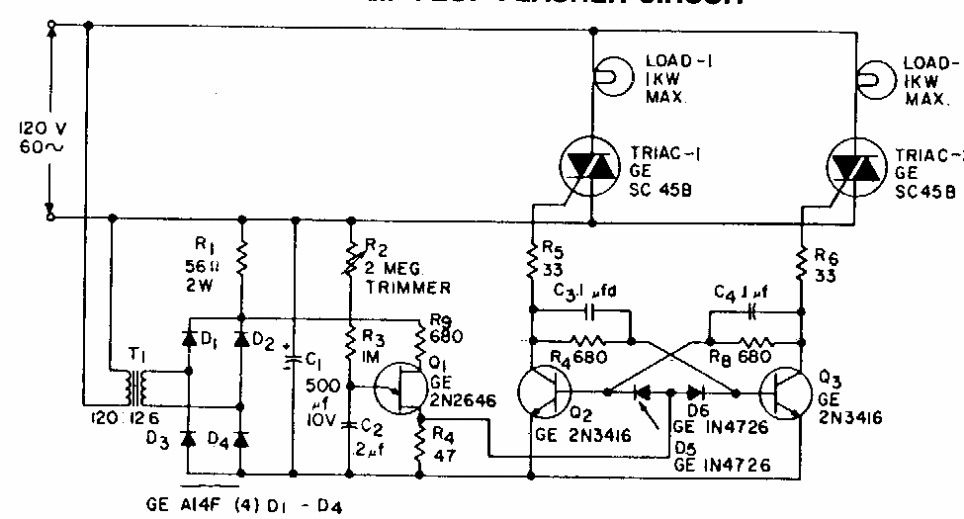

This circuit for incandescent light bulbs was suggested by General Electric in a 1980s documentation. The circuit can be adjusted to cycles from 0.1 to 10 seconds. The triacs are according to the controlled load.
| Clique na imagem para ampliar |
1 kW alternating beacon (CB6261E)
- Details
- Written by: Newton C. Braga
