10 W Amplifier (CB6287E)

Details
Written by: Newton C. Braga

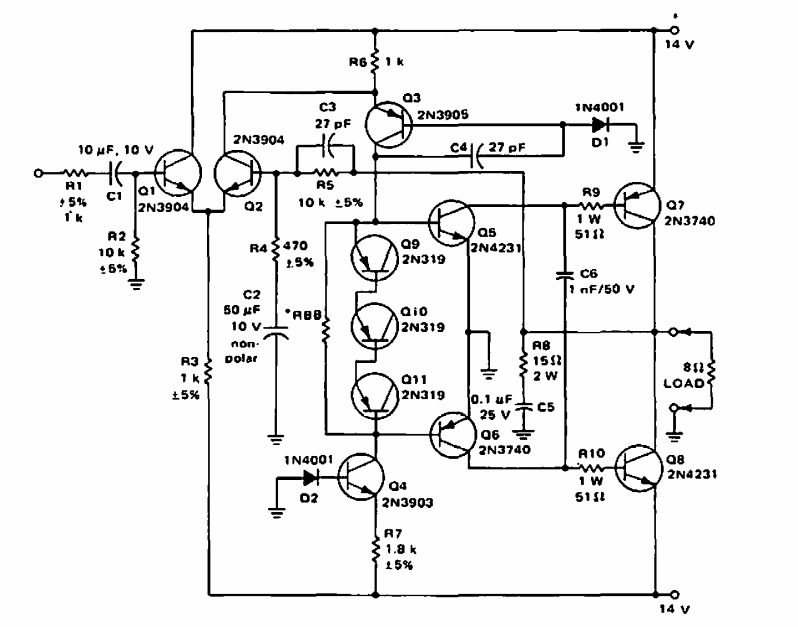

    For an 8 ohm load, this Motorola circuit was found in a 1968 documentation. The transistors are of the time and the power supply must be symmetrical.




| Clique na imagem para ampliar |
