DC Control with a Raystor (CB6325E)

Details
Written by: Newton C. Braga

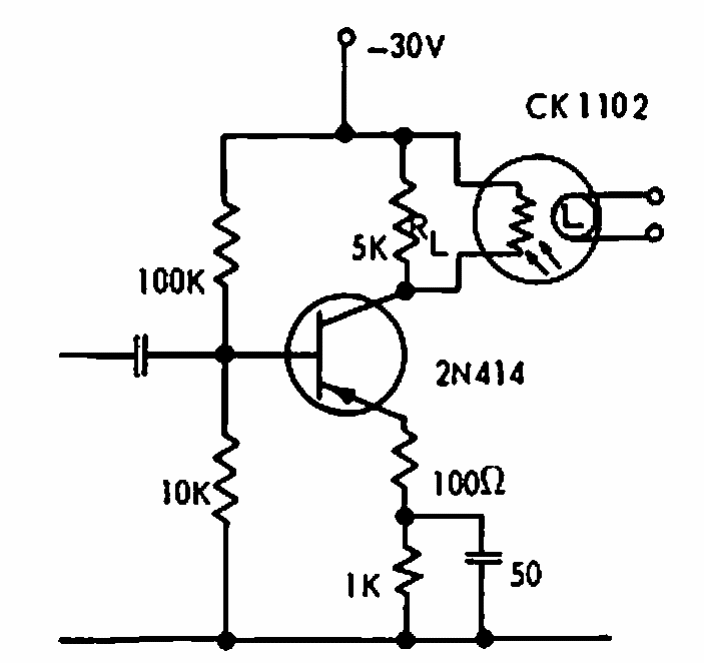

    Raystor is a component of the 1960s Raytheon. It consists of a light coupler that allows you to use the circuit as a DC control for signals as shown.
