Adjustable time chaser (CB6794E)

Details
Written by: Newton C. Braga

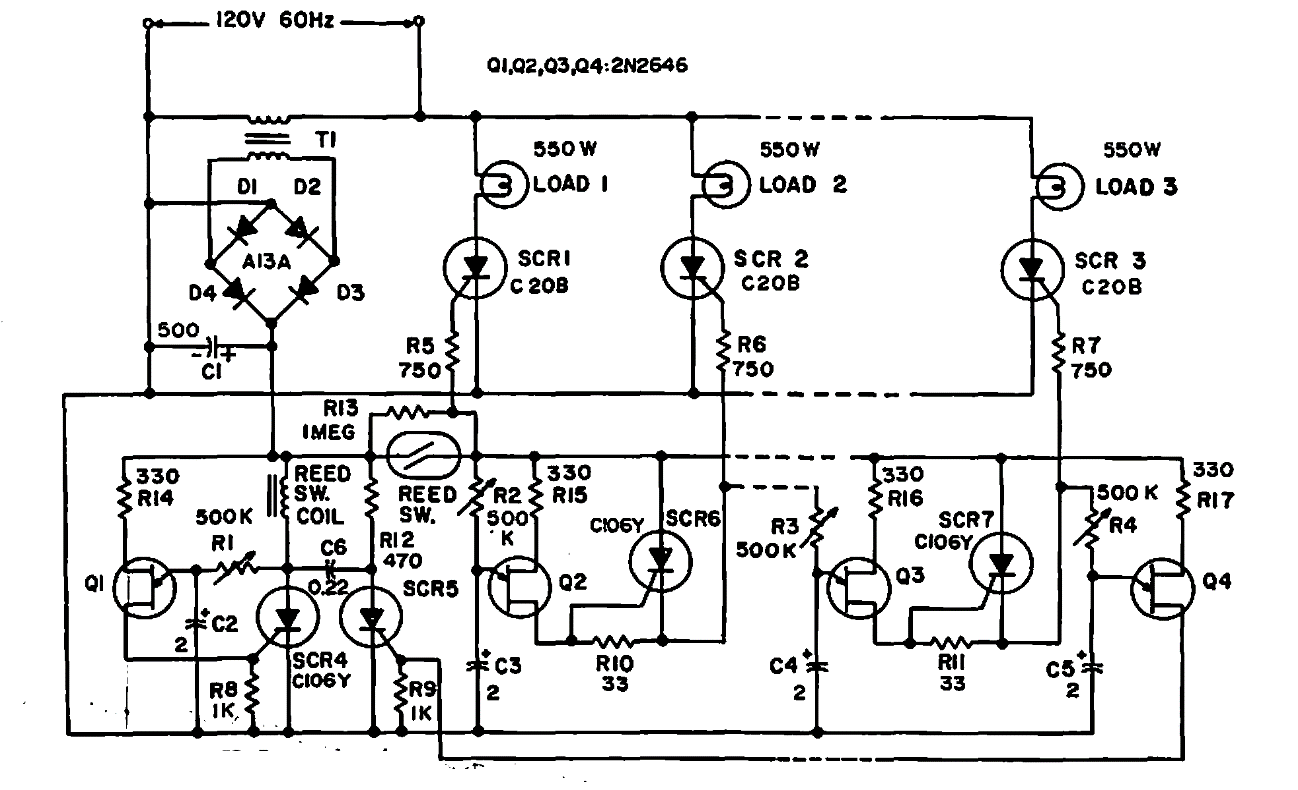

    This circuit was obtained in a 1967 Electronics World. The components are still common today, the SCRs can be replaced by equivalents and the unijunction transistors the 2N2646.
