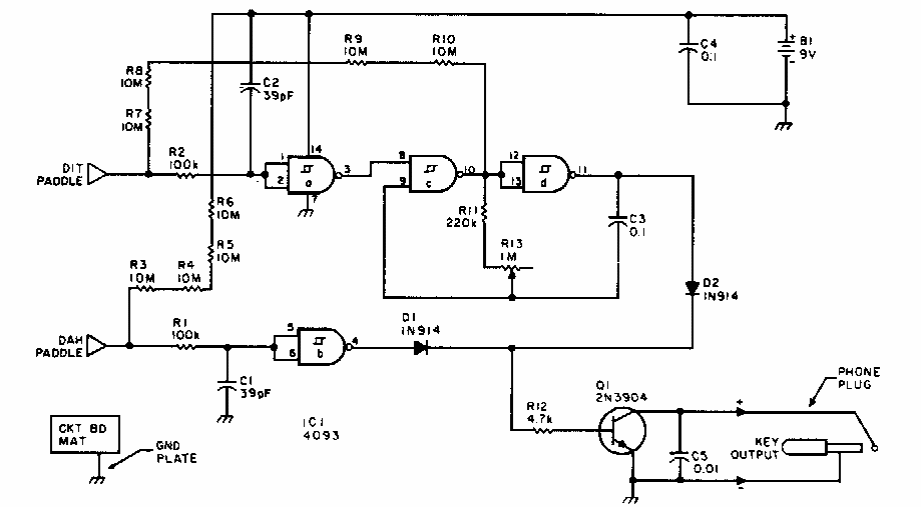

Electronic Morse Key (CB7313E)

This circuit was found in the magazine of radio amateurs 73 in a 90's edition. The components are current and the transistor is of general use.

| Clique na imagem para ampliar |

Sample and Hold (CB5953E)
This is the basic configuration of an operational amplifier sample & hold circuit. The FET and...
