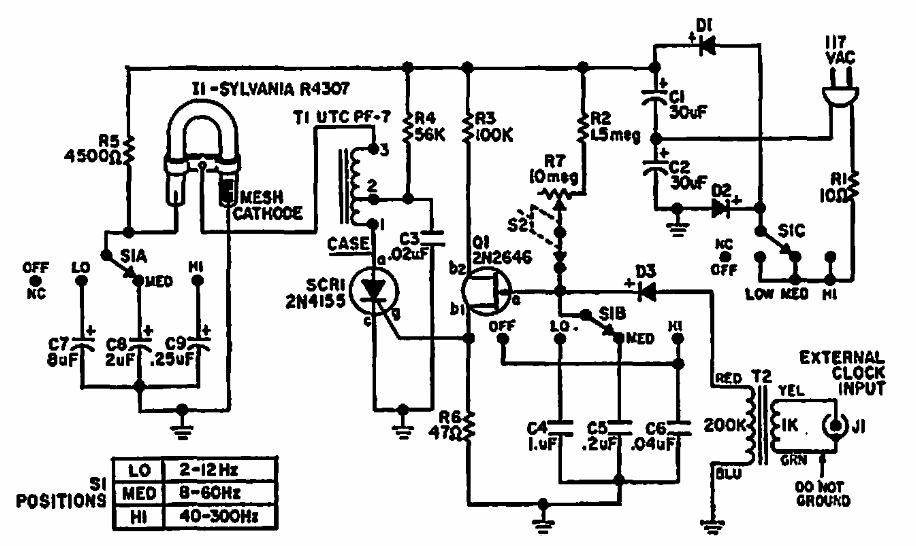

Found in a 1970 documentation this circuit makes use of components still common in the market. The SCR can be the TIC106D. The pulse transformer generates high voltage pulses to trigger the lamp. S1 selects the intensity of the pulses.
