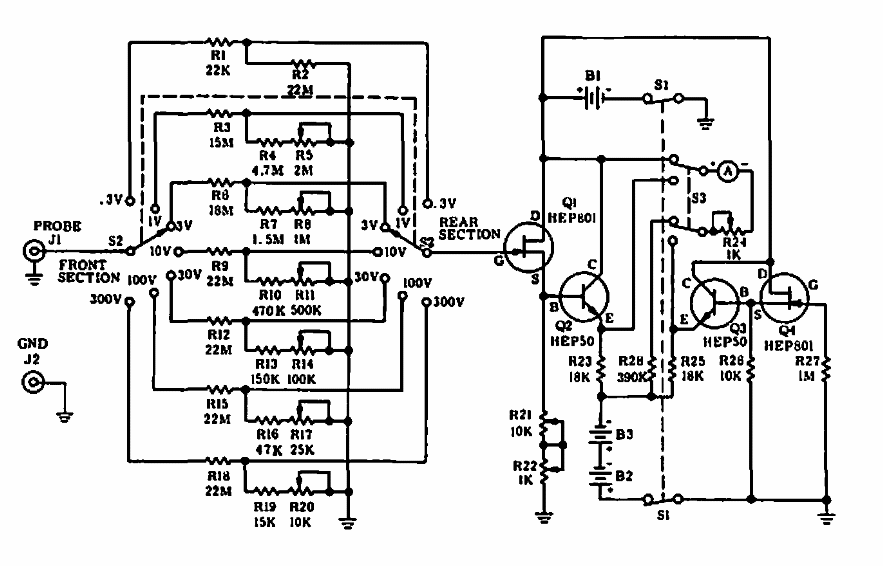

This circuit was obtained in a Motorola documentation from 1966. The circuit can use a common FET and the other transistors can be current bipolar for general use. The circuit has an input resistance of 22M and is powered by 3 9V batteries.
| Clique na imagem para ampliar |
