Parallel Alarm Series (CB6415E)

Details
Written by: Newton C. Braga

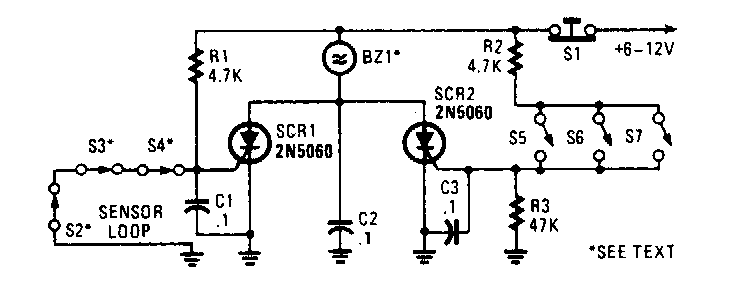

    This series and parallel sensor circuit was found in Popular Electronics from the 1990s. Any SCR can be used and the supply voltage depends on the load.




| Clique na imagem para ampliar |
