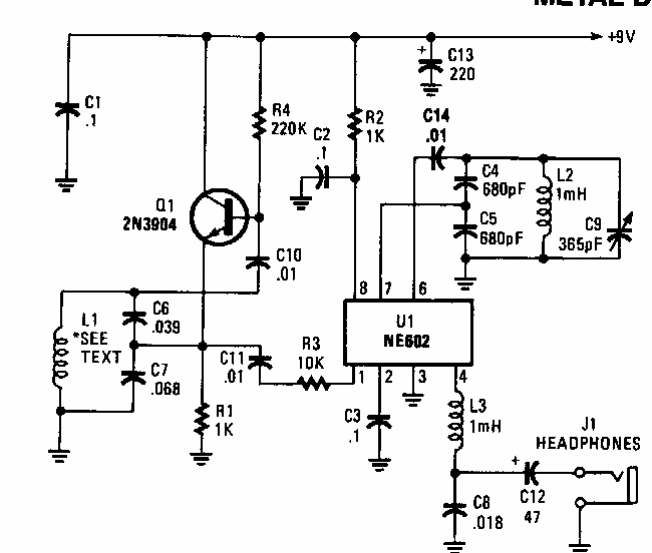

This circuit was found in a Popular Electronics of the 80's. The NE602 functions as a heterodyne detector, being a component not easily obtainable today. L1 is formed by 5 turns of wire 20 in a 9 inch diameter wood form.
