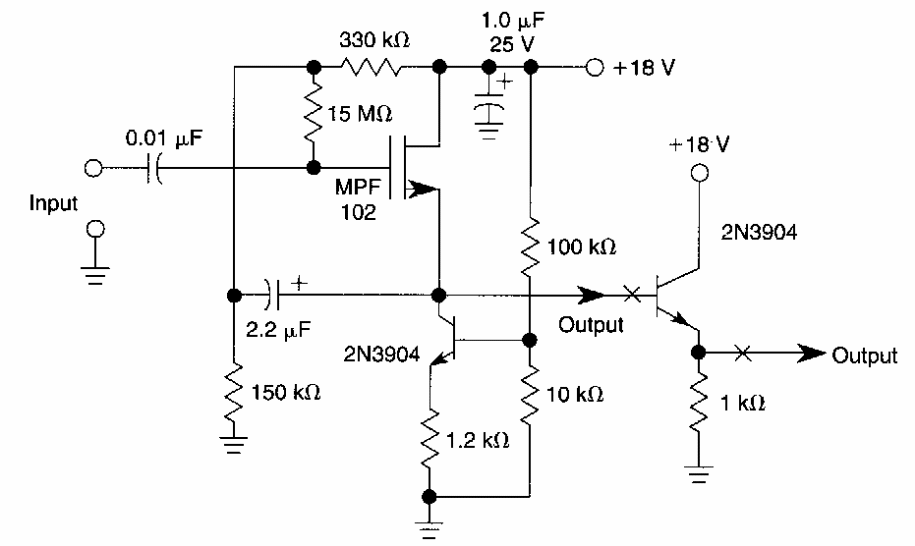

Found in American documentation from the 90's, this JFET stage has an input impedance of 500 M ohms. Bipolar transistors are general purpose types and the FET supports an equivalent.
| Clique na imagem para ampliar |
500 M ohm FET Stage (CB6972E)
- Details
- Written by: Newton C. Braga
