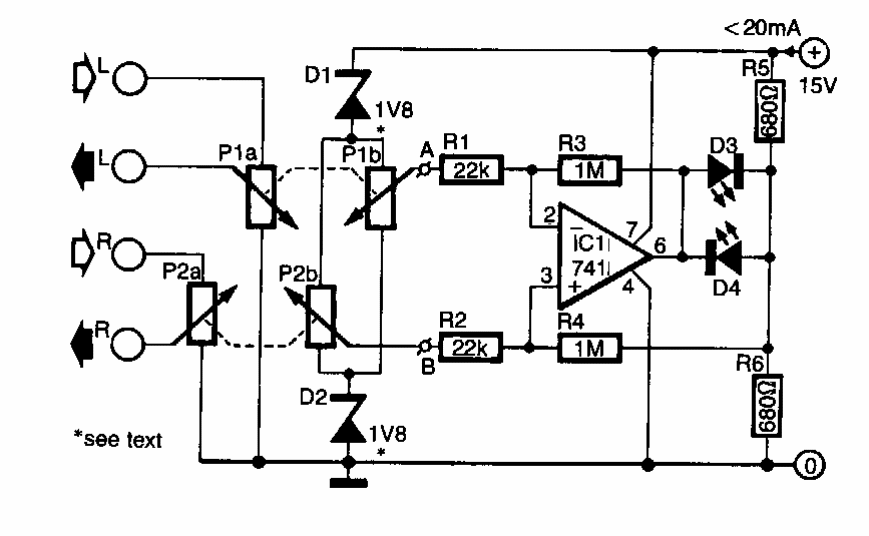

Balance indicator (CB7012E)

Details
Written by: Newton C. Braga



    This balance indicator for stereo amplifiers was found in an 80's Elektor. The components used are common. Zeners are 1.8 V or close to that value.
