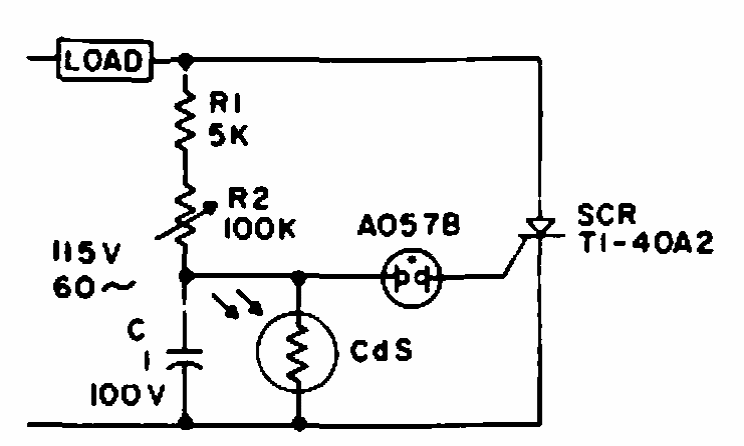

This circuit can be used to activate the lamp when it gets dark. We found the circuit in old American documentation. The SCR can be of the 106 series and the trigger element can be an ordinary neon lamp.
| Clique na imagem para ampliar |
SCR control by LDR (CB7217E)
- Details
- Written by: Newton C. Braga
