4W Amplifier (CB6205E)

Details
Written by: Newton C. Braga

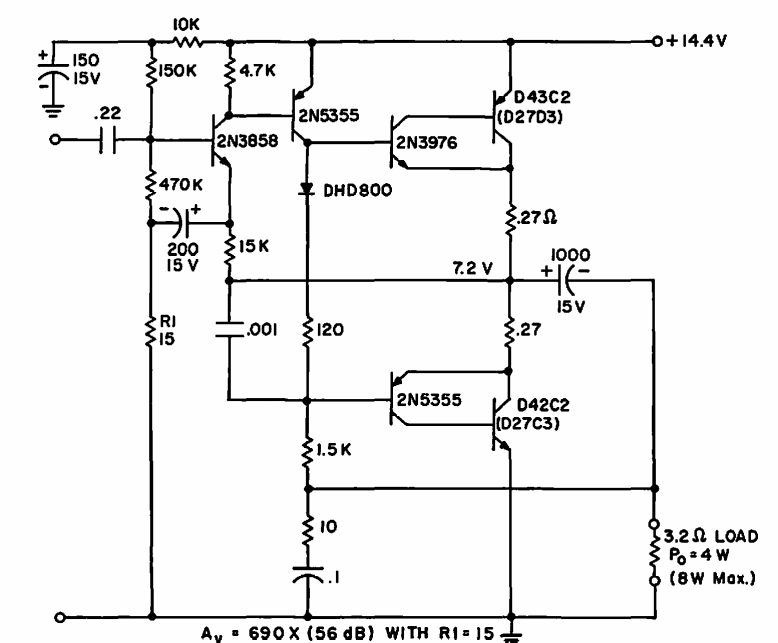

    This high gain circuit is from 1969 General Electric documentation. The transistors are of the time, but equivalent types can be tested.




| Clique na imagem para ampliar |
