Humidity sensor (CB6953E)

Details
Written by: Newton C. Braga

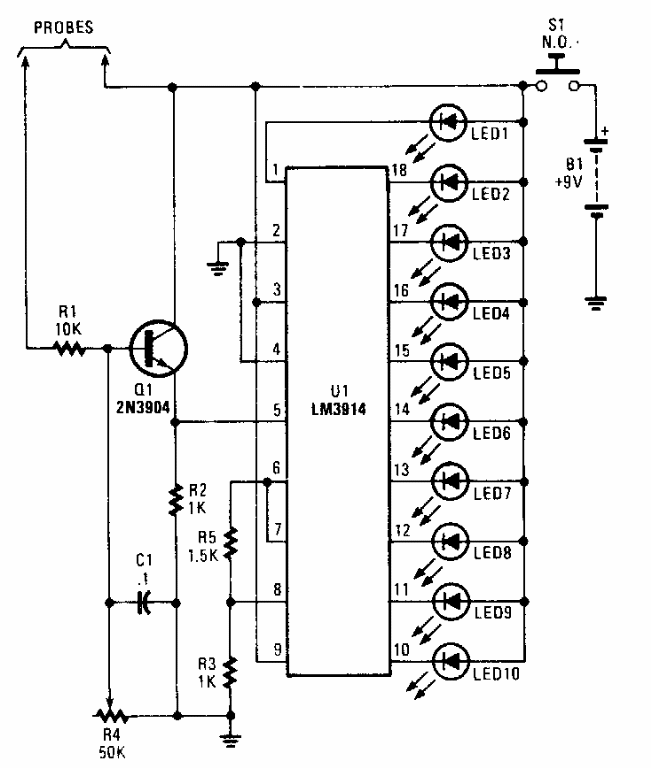

This humidity sensor indicates the different levels of conduction of the sensors through an LED bar. The circuit is from Popular Electronics and must be powered by cells or battery.






| Clique na imagem para ampliar |
