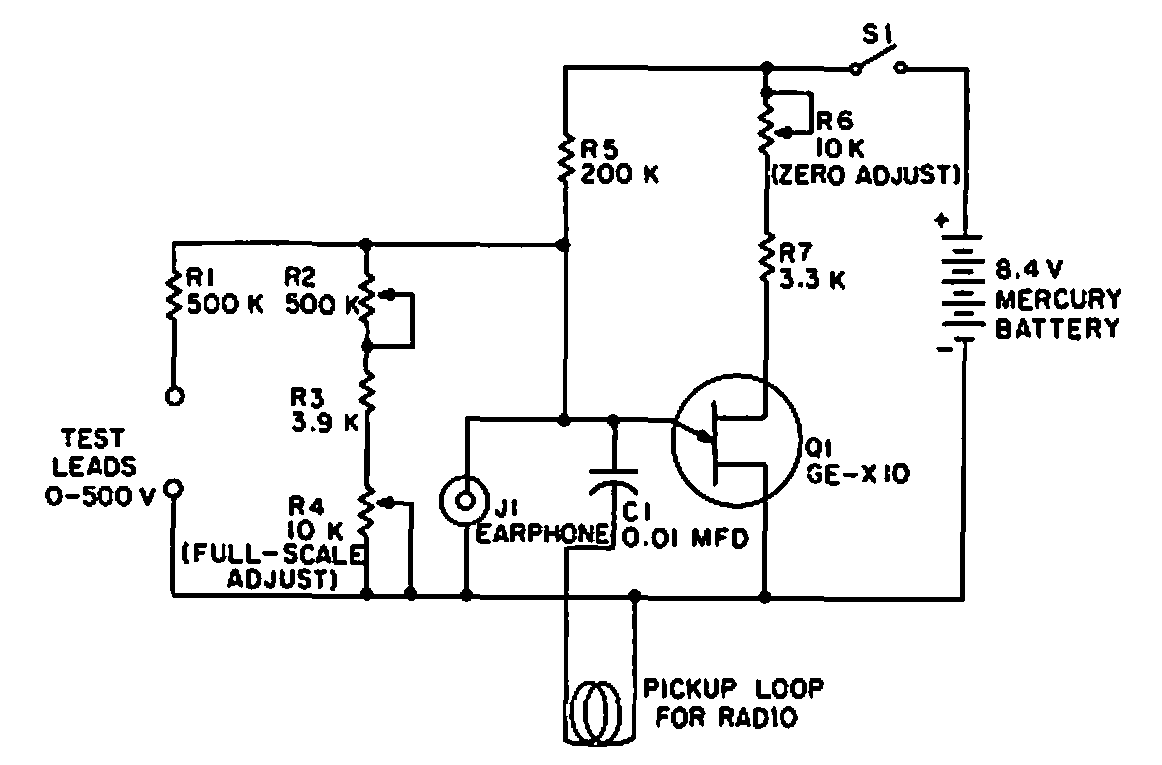

Suggested by the General Electric Hobby Manual of 1965 this circuit measures voltages from 0 to 500 V with input resistance of 500k functioning as a bridge whose signals can be detected by phone or a nearby AM radio. R2 has the voltage scale used to detect the zero point.
