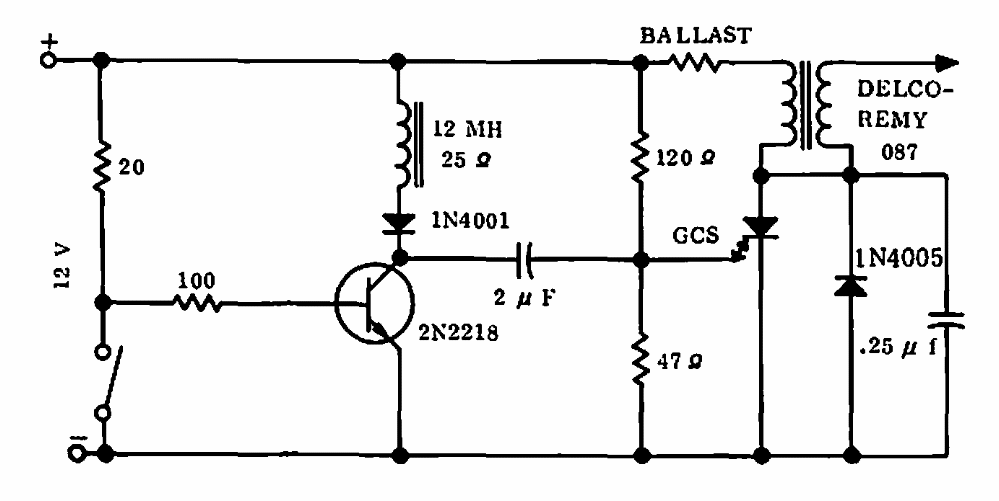

We found this circuit in a Motorola manual. The circuit has the capacitor charging at 15 to 30 V, then discharging through the coil and generating a voltage that reaches 500 V for the spark plugs.
| Clique na imagem para ampliar |
Capacitive Ignition (CB6380E)
- Details
- Written by: Newton C. Braga
