Second Order Voice Filter (CB6544E)

Details
Written by: Newton C. Braga

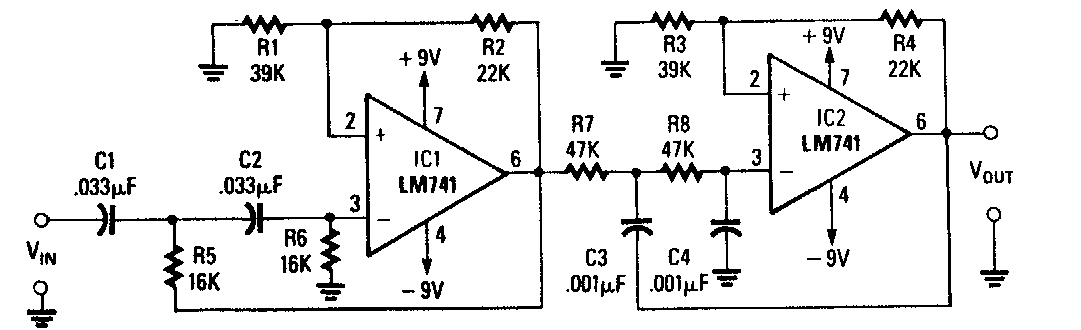

    Found on an 80's Radio Electronics, this circuit is designed to pass the 300 to 34,000 Hz voice range using standard operational amplifiers.
