Xenon Flash Source (CB6746E)

Details
Written by: Newton C. Braga

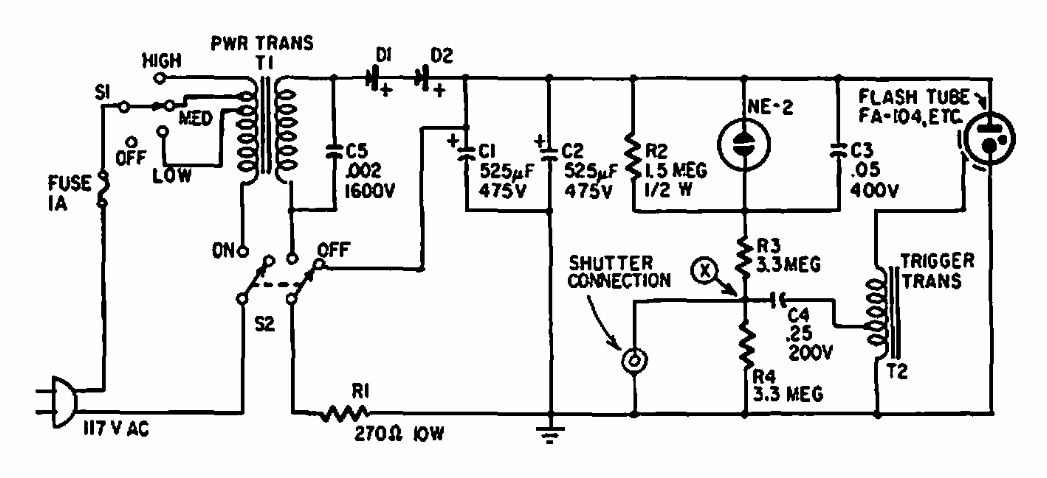

     This circuit is from a 1965 Radio Electronics. The triggering transformer generates high voltage pulses. The generated light pulse depends on C1 and C2.




| Clique na imagem para ampliar |
