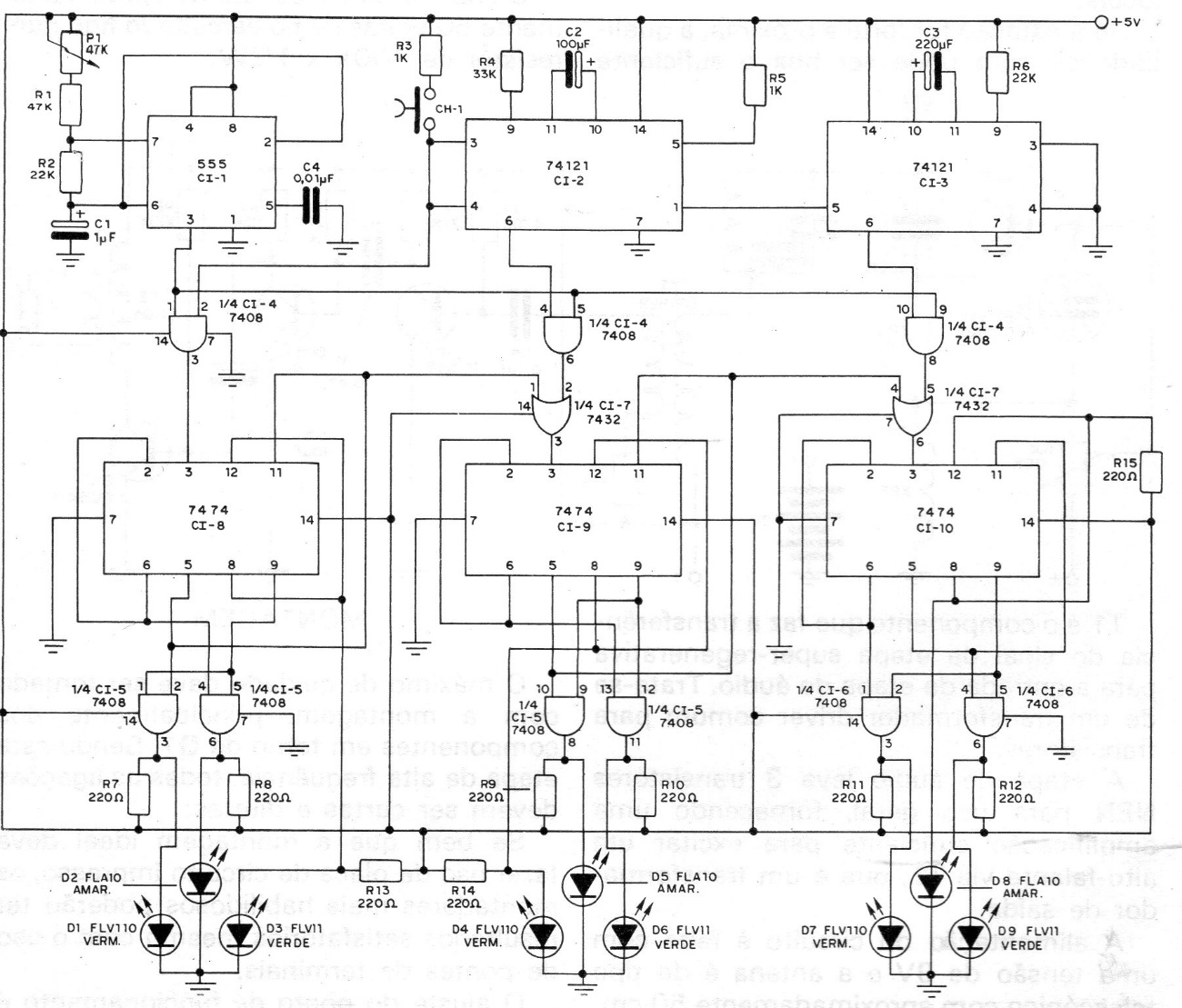

This digital electronic game circuit was found in a 1982 publication. It randomly draws the combination of two sets of LEDs when activated. The ´TTL circuit must be powered by a voltage of 5 V. The LEDs must be different colors and P1 adjusts the speed of the draw.
