Headlight switch (CB7259E)

Details
Written by: Newton C. Braga

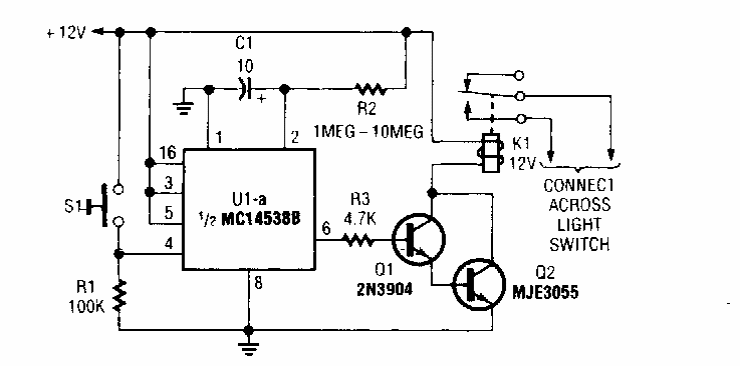

    Found in a Popular Electronics from the 80's, this circuit makes use of a time integrated to control a relay in a timed way. R2 determines the activation time.
