Light comparator (CB7368E)

Details
Written by: Newton C. Braga

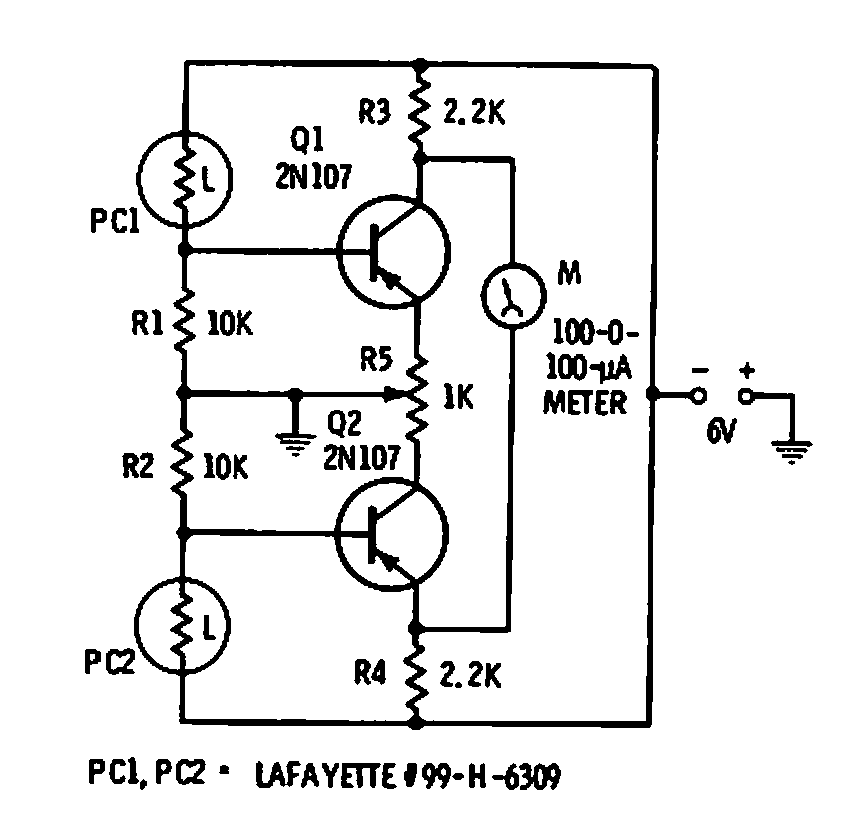

    Found in a 1968 Novel Electronics Circuit, this circuit compares two light intensities using common LDRs as sensors. Transistors can be modern PNP equivalents.
