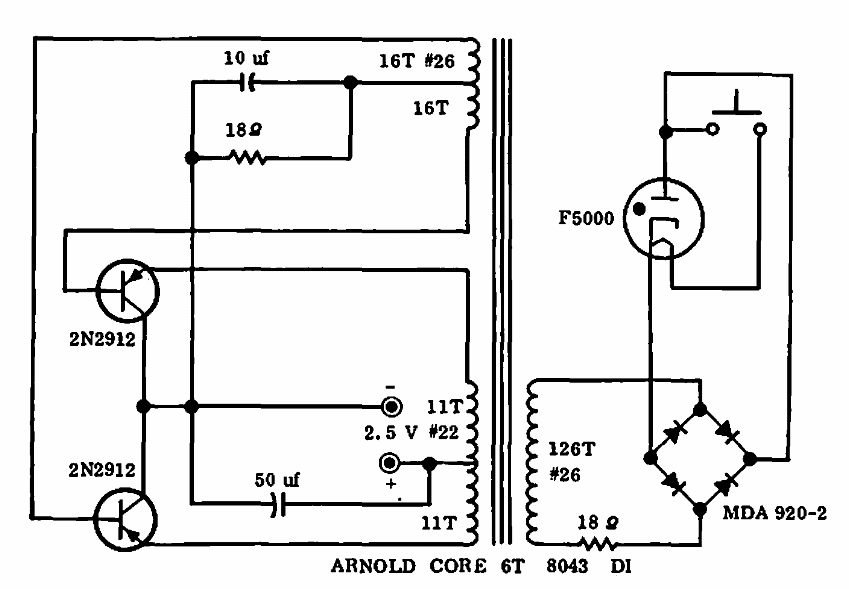

This 1965 circuit consists of a small inverter for an ultraviolet lamp. The circuit is from a Motorola manual and the transformer must be wound on the core indicated in the diagram.
| Clique na imagem para ampliar |
Portable ultraviolet source (CB7188E)
