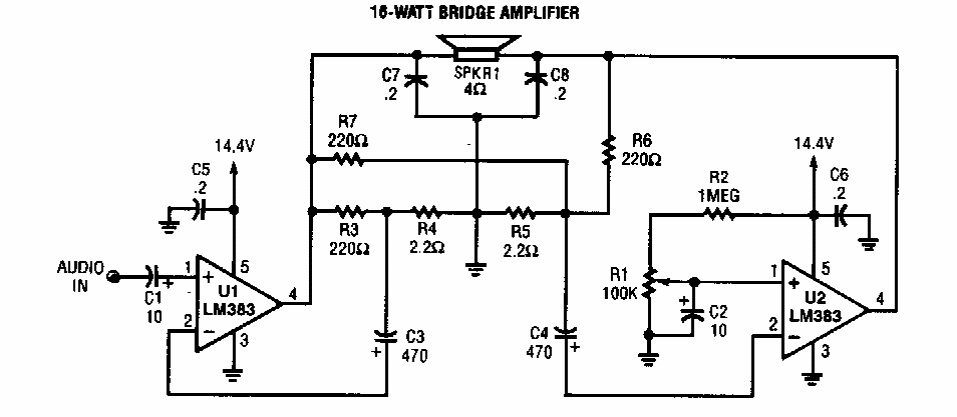

Found in Popular Elecronics, this configuration also appears in this section, but obtained from other sources. The 14.4 V supply allows the circuit to be used in the car.
| Clique na imagem para ampliar |
18 W Bridge Amplifier (CB6990E)
- Details
- Written by: Newton C. Braga
