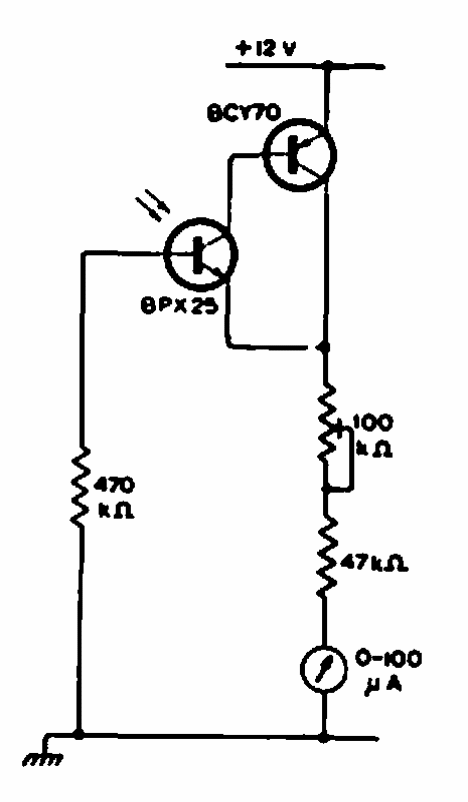

Linear photometer (CB7366E)

Details
Written by: Newton C. Braga



    This circuit was found in a 1967 Philips publication. Transistors support equivalents and modern equivalents can be used.
