Slow Turn On Power Supply For Amplifiers (CIR815E)

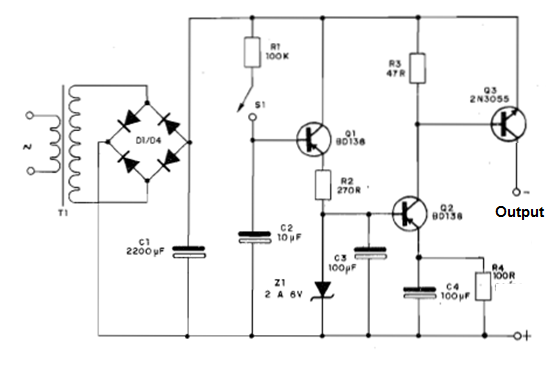

This circuit is used to cut the “click” in the loudspeaker of amplifiers when they are turned on. The maximum output voltage is 60 V and the current is 2 A. The 2N3055 must be mounted on a large heatsink. Output voltage depends on the transformer
