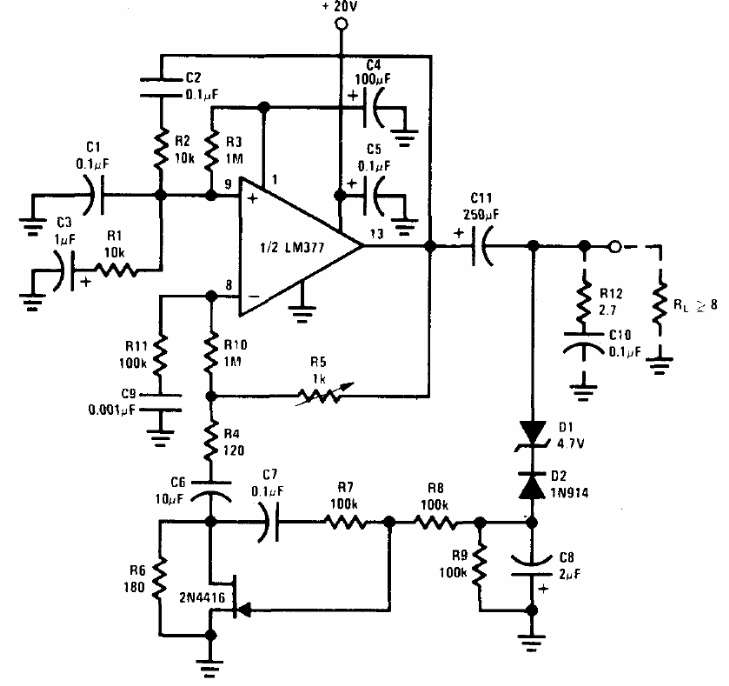

This circuit generates a 2 W sinusoidal signal using the Wien bridge configuration. We found this oscillator in the 1977 National Semiconductor Audio Handbook. The integrated circuit is not very easy to obtain and the FET can be the BF245.
