High Gain FET (CB13680E)

Details
Written by: Newton C. Braga

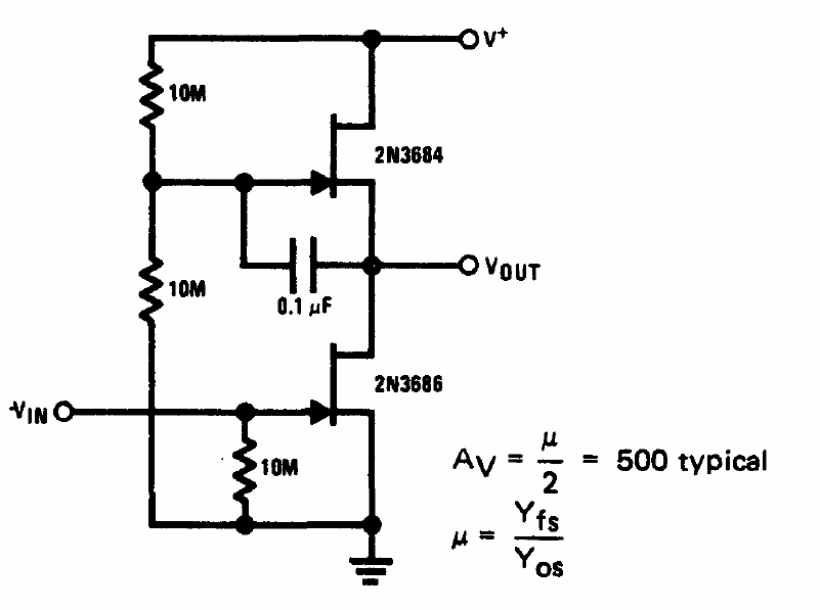

In the figure we have the way to obtain 500 gain from a FET. FETs can be BF245 or MPF102. The circuit is from the 1977 National Semiconductor FET Data Book. Power supply depends on the application.
