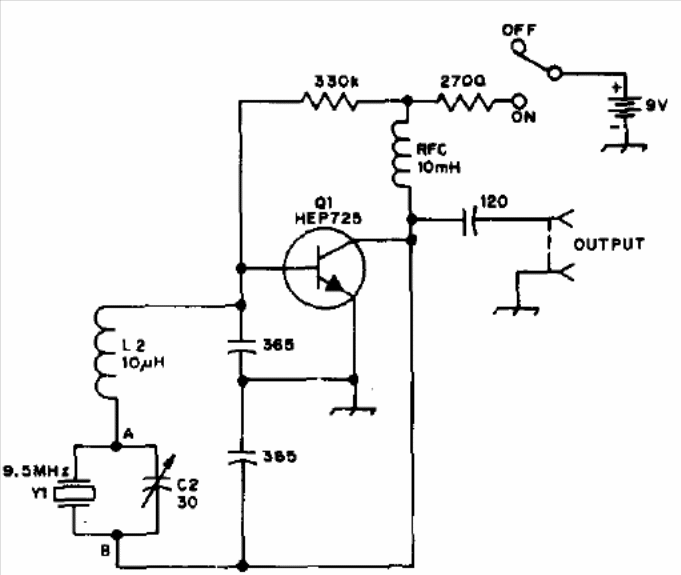

This circuit can be tuned in a 100 kHz band around the frequency of the crystal. The transistor can be 2N2222. We found this configuration in a technical documentation from the 1970s. The output power is very low, but amplification stages can be used in applications such as transmitters.
