Infrared Receiver (CB14790E)

Details
Written by: Newton C. Braga

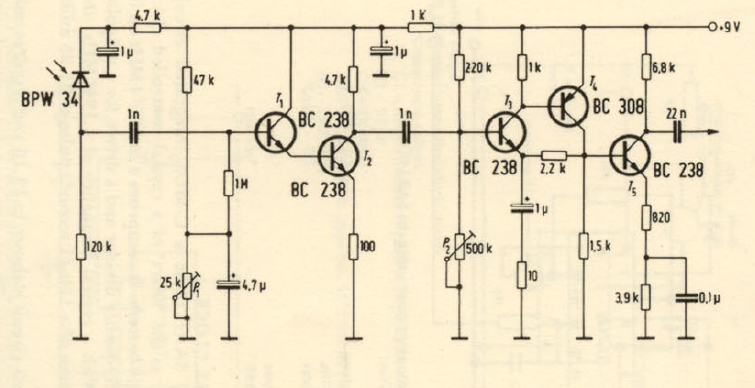

This receiver uses old transistors that are equivalent to BC548 and BC558. The photo diode is of any type. The receiver can be used on a highly sensitive audio link.




| Clique na imagem para ampliar |
