9-Bit DAC (CB15413E)

Details
Written by: Newton C. Braga

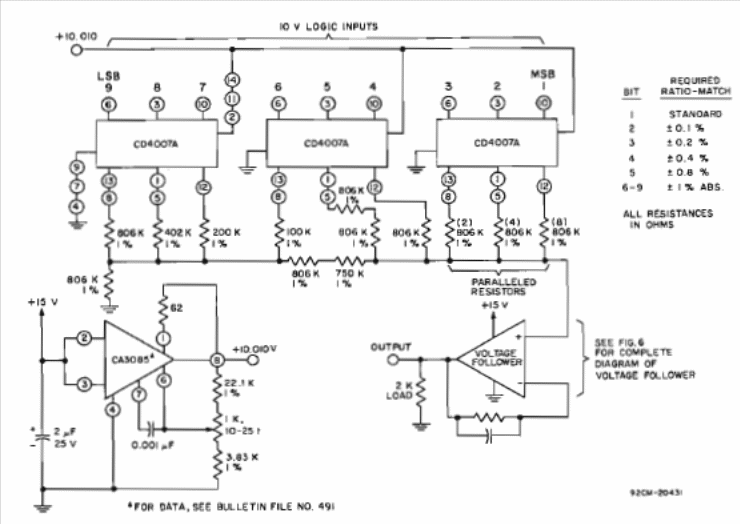

This 9-bit DAC circuit was found in the RCA CMOS integrated circuits manual of the 1970s. The circuit operates at 15 V and consumes between 70 and 200 mW. The currents at each outlet are approximately 400 uA.




| Clique na imagem para ampliar |
