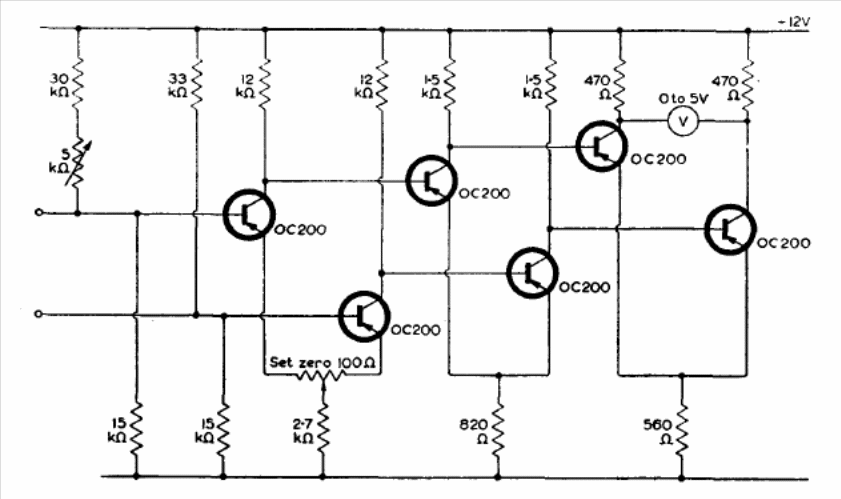

This circuit with germanium transistors is from 1960 and was found in Mullard's transistor application manual from 1960. The circuit can be adapted to use more modern transistors.
| Clique na imagem para ampliar |
Instrumentation Amplifier (CB14777E)
- Details
- Written by: Newton C. Braga
