Comparator with an operational (CB6501E)

Details
Written by: Newton C. Braga

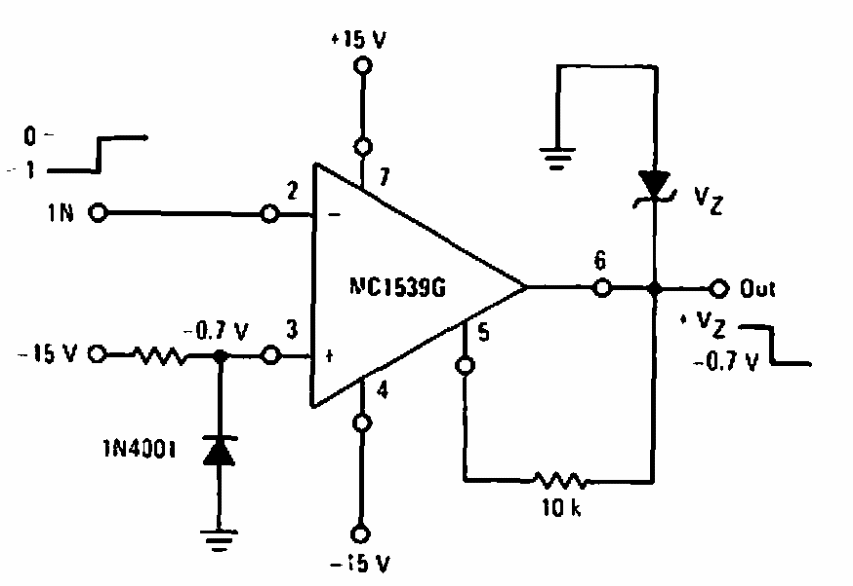

    This circuit was obtained from Motorola documentation from 1969. The setting applies to other operating systems, including lower supply voltages. The zener determines the output signal.




| Clique na imagem para ampliar |
