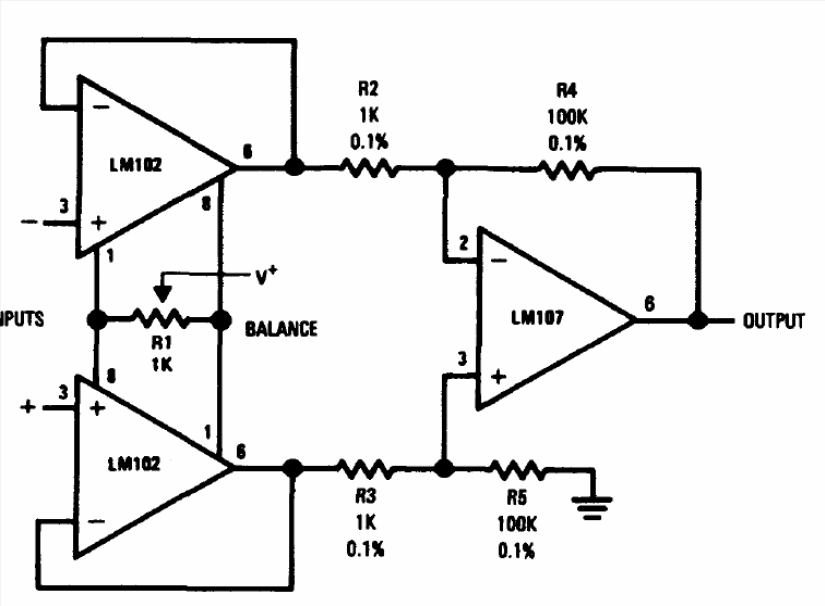

This circuit is based on uncommon operations today but can be adapted to operate with more modern operations. The circuit is from the 1994 Linear Applications Handbook by National Semiconductor. The power supply must be symmetrical, and the gain is 100.
| Clique na imagem para ampliar |
