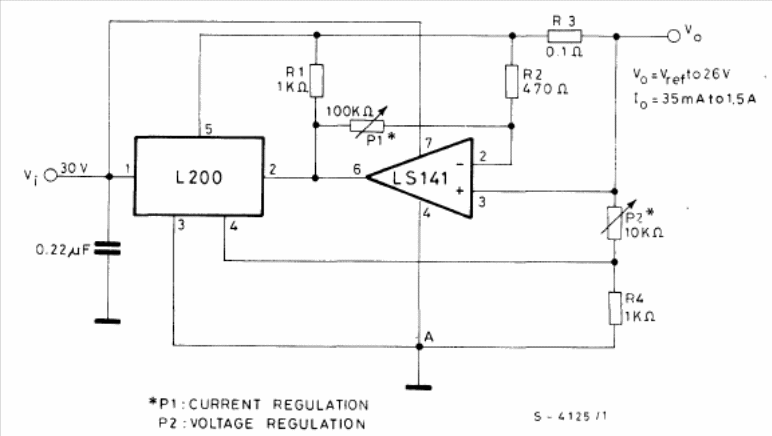

This circuit is from the 1982 SGS Linear Circuits Manual. The circuit provides currents from 35 mA to 1.5 mA set at P1 and Vref voltages at 26 V set at P2.
| Clique na imagem para ampliar |
Current and Voltage Regulator (CB15148E)
- Details
- Written by: Newton C. Braga
