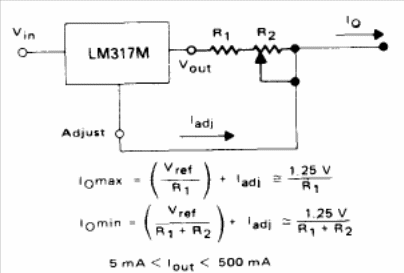

We find the LM317 integrated circuit in the catalog of several manufacturers. The circuit shown is from the Motorola Linear Databook of 1990. The formulas for calculating the components for a given current are next to the diagram.
500 mA Current Regulator LM317 (CB14515E)
- Details
- Written by: Newton C. Braga
