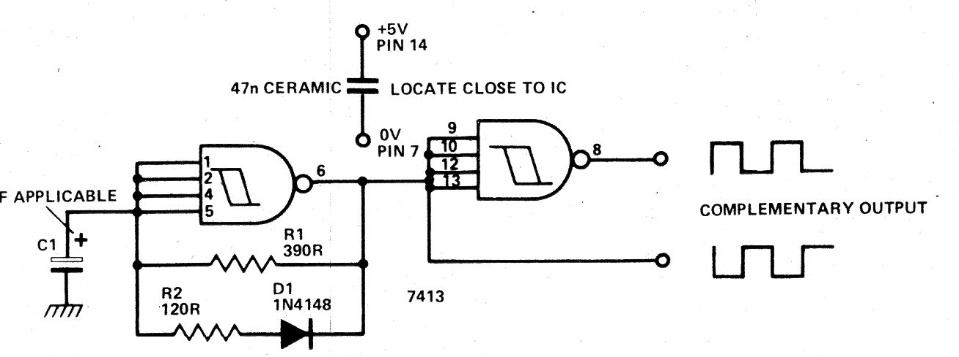

For 220 pF C1 this circuit generates a 10 MHz signal. Other frequencies can be obtained with proportional values of this component, always remembering the limit of the integrated circuit. The supply must be made with a 5V voltage. The circuit was found in a 1979 publication.
