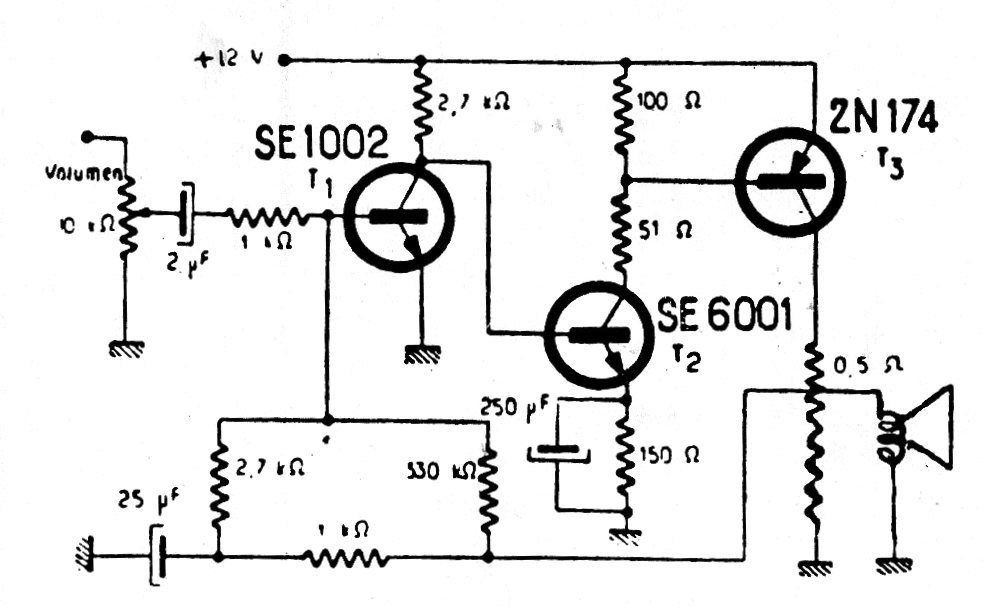

6.5 W Automotive amplifier (CB15117E)

Details
Written by: Newton C. Braga



Transistors on this circuit are uncommon today, but adaptations can be made to use modern transistors. We found this circuit in a 1973 documentation. The power transistor must be mounted on a heat radiator.




| Clique na imagem para ampliar |
