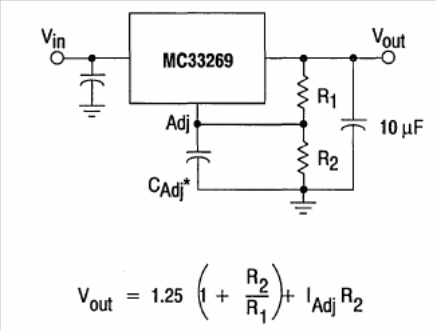

The maximum current of this Motorola LDO is 1 A. The formula next to the diagram makes it possible to calculate R1 and R2 for the desired voltage. The circuit is from Motorola's 1993 Linear Interface ICs.
Adjustable Regulator MC33269 (CB15343E)
