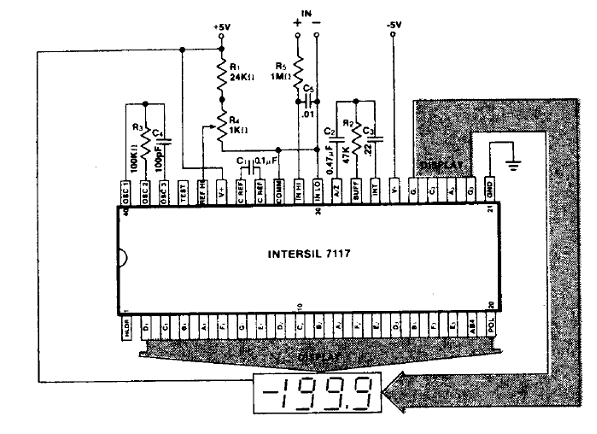

This circuit is from the 1983 Intersil Databook. The circuit operates on 5 V power and has a consumption determined by the display, being found in many multimeters and other low-cost instruments. The full scale is determined by the input resistor.
4 and Half Digit LED Display ICL7117 (CB15357E)
- Details
- Written by: Newton C. Braga
