Photo Darlington Activating a Relay (CB14627E)

Details
Written by: Newton C. Braga

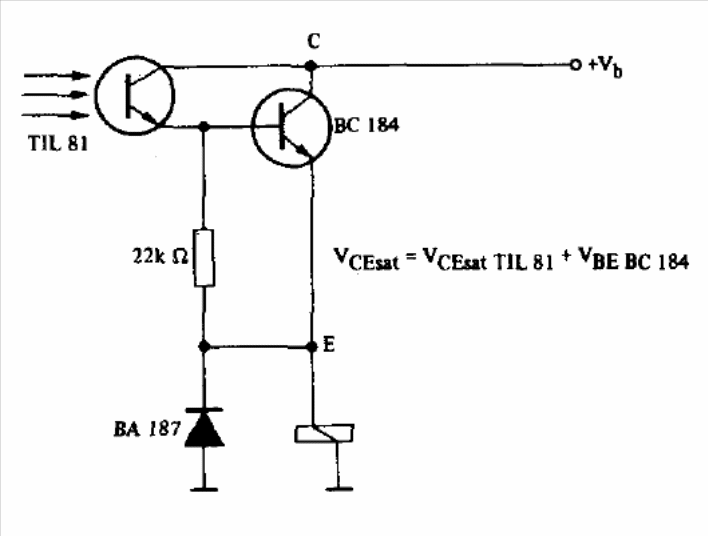

This circuit was found in a technical documentation from Texas Instruments, using a phototransistor common at the time (1978). More modern equivalent components can be used. The supply voltage depends on the relay used.




| Clique na imagem para ampliar |
