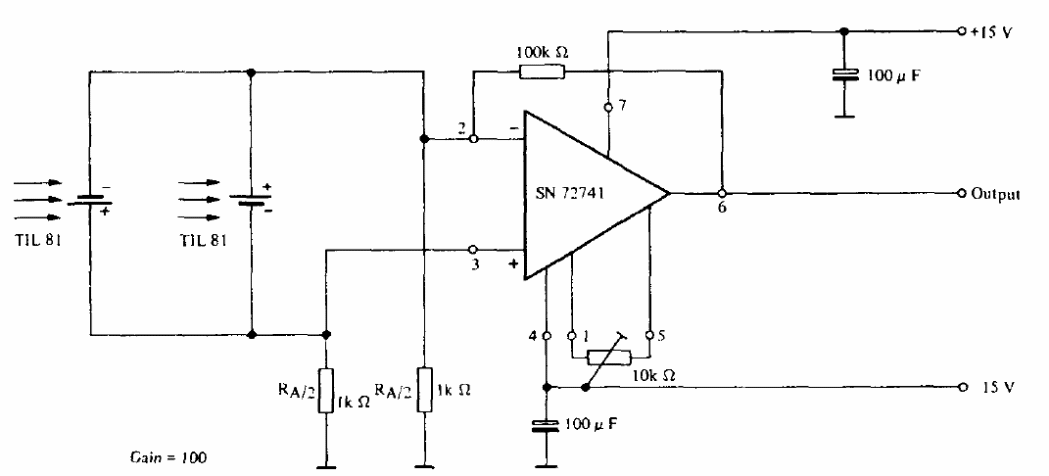

We found this circuit in a manual of optoelectronics from Texas Instruments. In it photodiodes or photo-cells are used in the voltage generation mode, connected in opposition. The gain is given by the 100k resistor and the power supply must be symmetrical.
