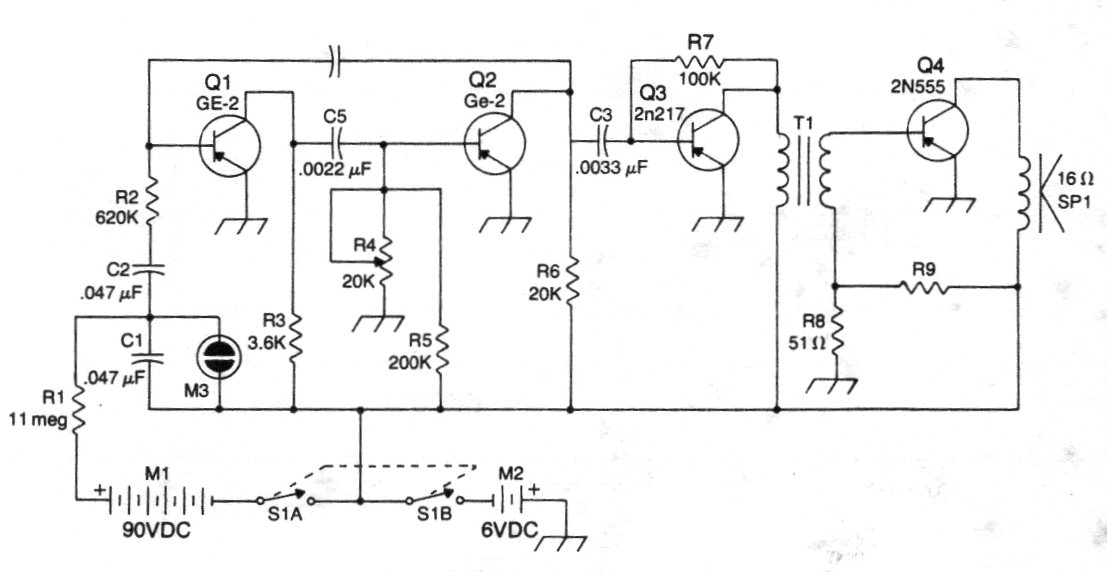

This circuit, from a 1981 publication, can be changed to use more modern components such as the BC558 and instead of the 90 V battery, a source of 1 to 5 mA, since consumption is very low in this sector. The transformer is a transistorized radio drive.
