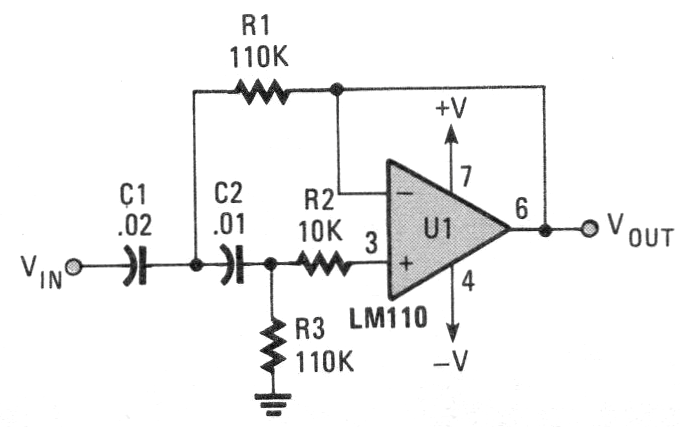

Active High Pass Filter (CB14926E)

Details
Written by: Newton C. Braga



This conventional filter circuit is from American documentation from the 1990s. The operational amplifier admits an equivalent and the power supply must be symmetrical.
