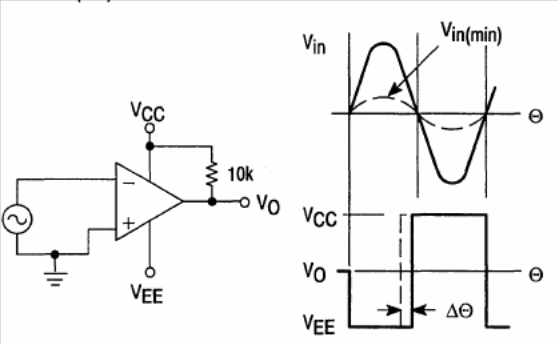

The circuit shown is from Motorola's Linear Interface ICs from 1992. The circuit uses a symmetrical source, and its characteristics are given in the diagram.
Zero Crossing Detector for Symmetric Source LM139 (CB15252E)
- Details
- Written by: Newton C. Braga
