Precision Diode (CB15803E)

Details
Written by: Newton C. Braga

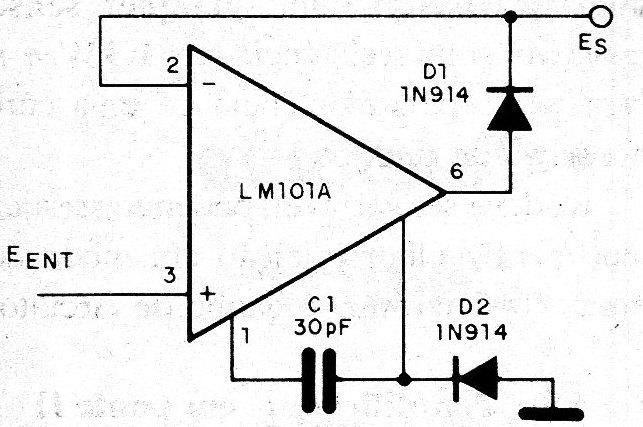

Both the operational amplifier and the diodes admit equivalents in this circuit suggested by National Semiconductor. The power source must be symmetrical, and the circuit curve resembles an ideal diode.




| Clique na imagem para ampliar |
