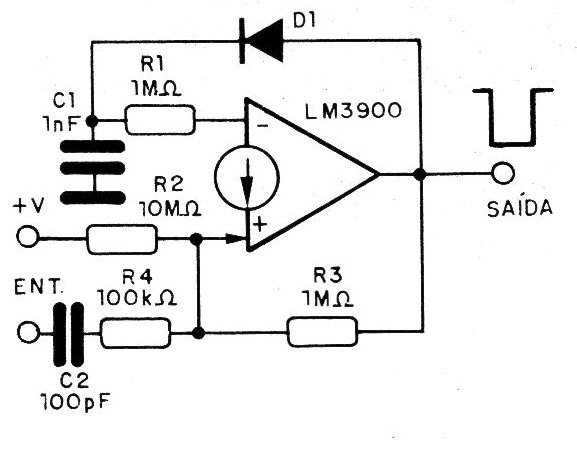

The circuit in the figure generates a negative pulse when it receives an appropriate stimulus at its input. The duration of this pulse depends on C1, and its operation is like the previous one (CB15620E).
Negative Pulse Generator LM3900 (CB15621E)
