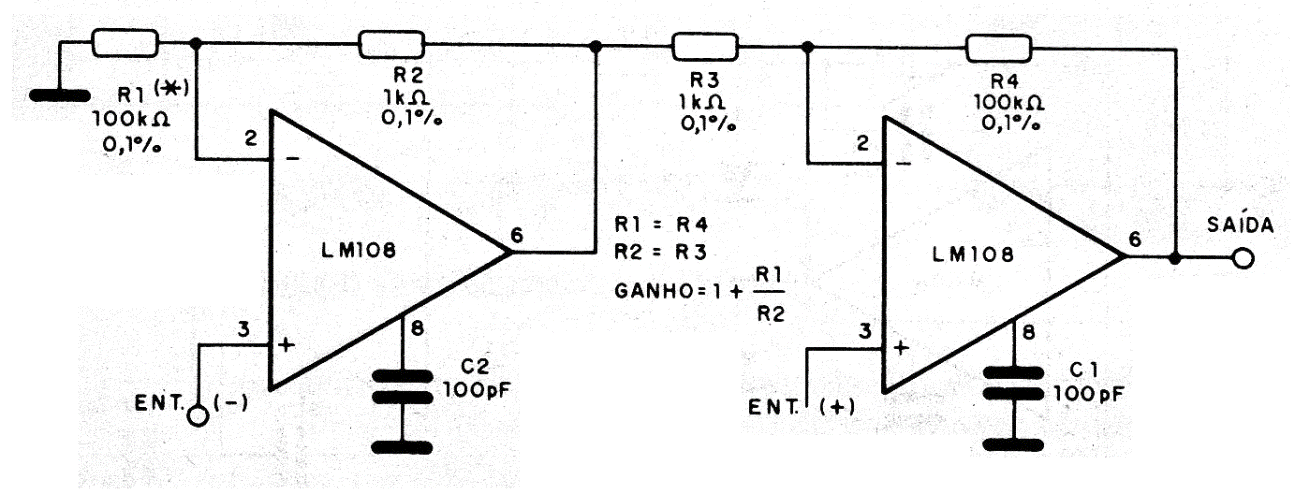

This amplifier, suggested by National Semiconductor (Now Texas Instruments), has high input impedance, and must use a symmetrical source. The components must maintain the values indicated by the formulas next to the diagram. Equivalent operational amplifiers can be used.
