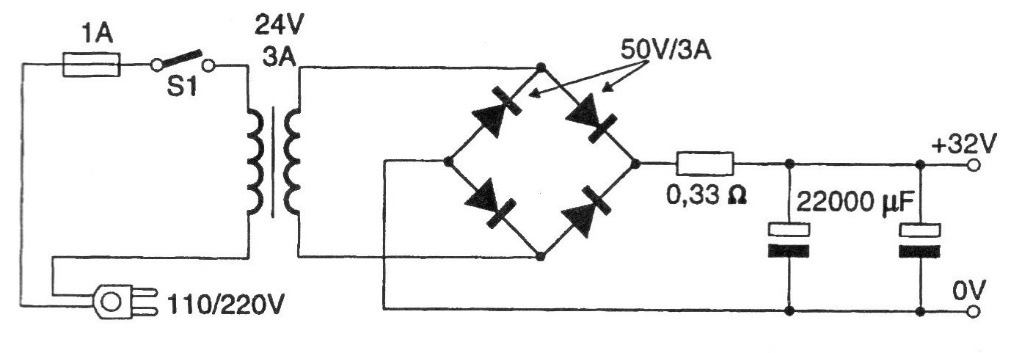

This simple source is suitable for audio amplifiers providing an output voltage of 32 V with a current of 3 A, which means a maximum power of 96 W. Filter capacitors must have a minimum working voltage of 50 V and diodes must be able to operate with a current of at least 1.5 A.
