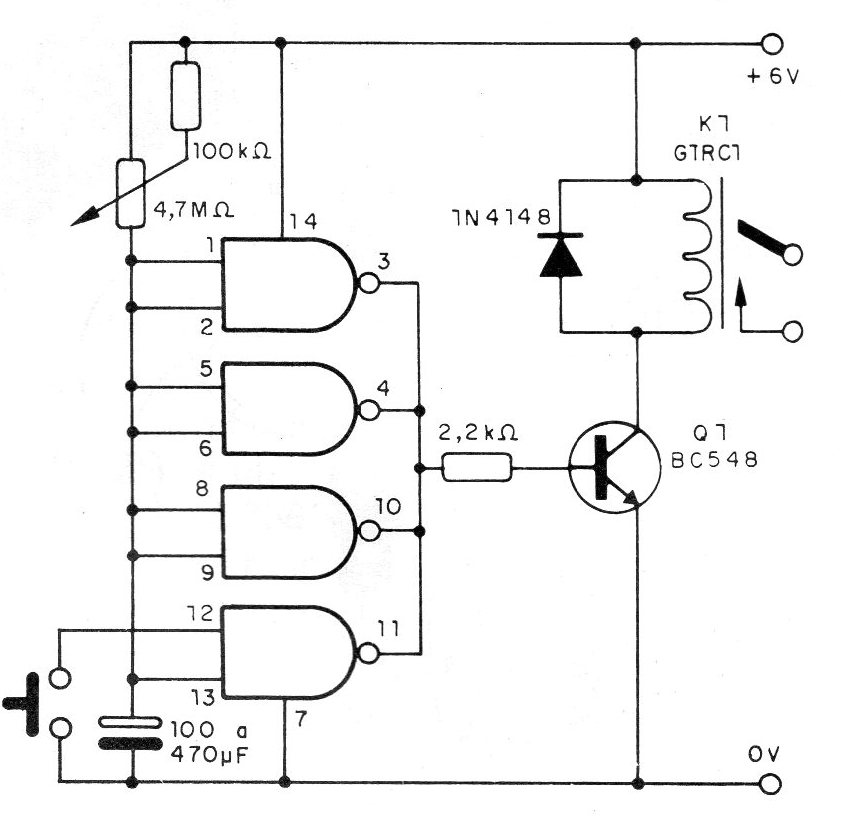

Long timings, reaching 1 hour if a 1,500 uF capacitor is used, can be achieved with this circuit. The power supply depends on the relay, which can also be 12 V with a type equivalent to that indicated in the figure, which is no longer manufactured.
