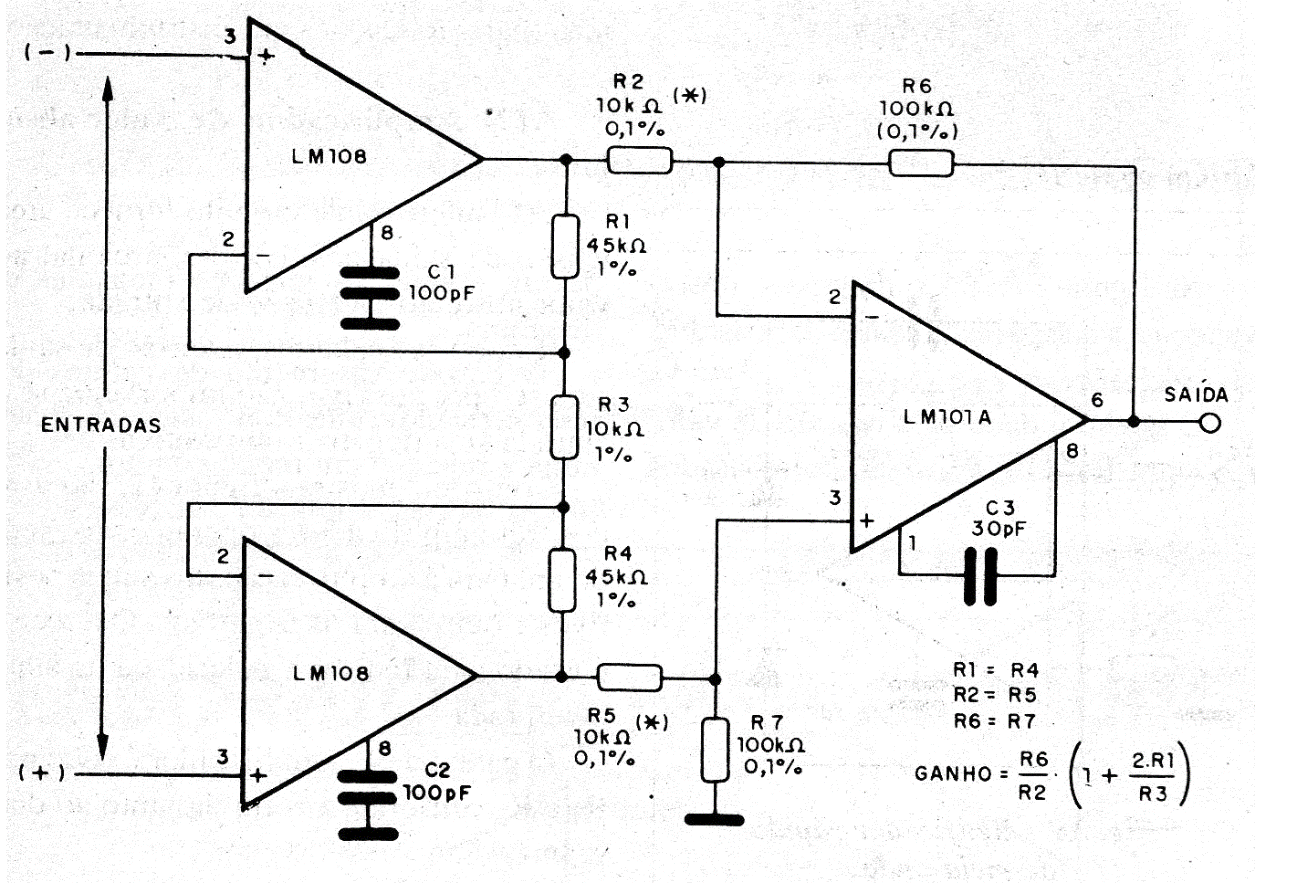

This instrumentation amplifier uses three operational ones, and the components must maintain the relationship of values according to formulas next to the diagram. The power supply must be symmetrical, and equivalent operational amplifiers can be used.
